Aa) Lukis diagram fasor arus dan tegangan dari rangkaian RLC di atas bb) Lukis diagram fasor hambatan, reaktansi dan impedansi dari rangkaian RLC di atas (Sumber gambar dan angka: Soal UN Fisika SMA Tahun 2008 P 04 dengan perbedaan nilai tegangan sumber) Pembahasan a) Pola sinusoidal dari tegangan sumber listrik adalah sebagai berikut. Diagram Fasor Resonansi Paralel. Pada rangkaian RLC paralel tegangan sefasa dengan arusnya dalam unsur resistif, mendahului dalam unsur induktif dan tertinggal dalam unsur kapasitif, maka dapat dibuat interpretasi diagram fasor untuk rangkaian RLC paralel seperti diperlihatkan gambar 1-5.4.

- Diagram Fasor Rangkaian Rlc Circuit
- Gambar Diagram Fasor Rangkaian Rlc
- Diagram Fasor Rangkaian Rlc Circuits

**Resonance in series****RLC Circuit**

## Diagram Fasor Rangkaian Rlc Circuit

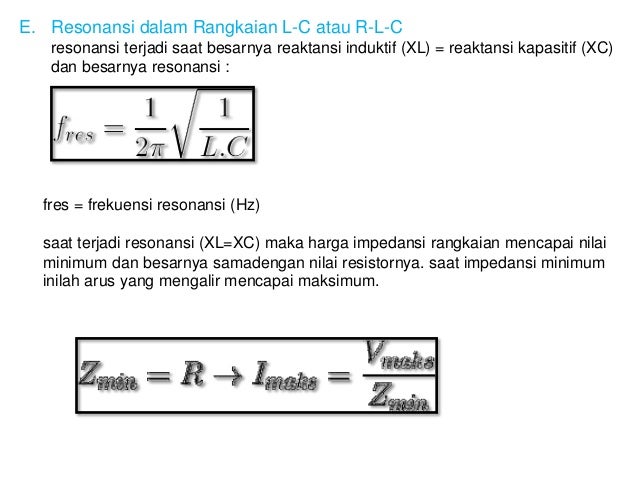

When the frequency of the applied alternating source (ω* _{r}*) is equal to the natural frequency 1/ √(LC) of the

*RLC*circuit, the current in the circuit reaches its maximum value. Then the circuit is said to be in electrical resonance. The frequency at which resonance takes place is called resonant frequency.

Resonant angular frequency, ω* _{r}*= 1/ √(LC)

Since *X _{L}* and

*X*are frequency dependent, the resonance condition (

_{C}*X*

*=*

_{L}*X*) can be achieved by the varying the frequency of the applied voltage.

_{C}**Effects of series resonance**

When series resonance occurs, the impedance of the circuit is minimum and is equal to the resistance of the circuit. As a result of this, the current in the circuit becomes maximum. This is shown in the resonance curve drawn between current and frequency (Figure 4.54).

At resonance, the impedance is

Therefore, the current in the circuit is

## Gambar Diagram Fasor Rangkaian Rlc

The maximum current at series resonance is limited by the resistance of the circuit. For smaller resistance, larger current with sharper curve is obtained and vice versa.

**Applications of series RLC resonant circuit**

RLC circuits have many applications like filter circuits, oscillators, voltage multipliers etc. An important use of series RLC resonant circuits is in the tuning circuits of radio and TV systems. The signals from many broadcasting stations at different frequencies are available in the air. To receive the signal of a particular station, tuning is done.

## Diagram Fasor Rangkaian Rlc Circuits

The tuning is commonly achieved by varying capacitance of a parallel plate variable capacitor, thereby changing the resonant frequency of the circuit. When resonant frequency is nearly equal to the frequency of the signal of the particular station, the amplitude of the current in the circuit is maximum. Thus the signal of that station alone is received.
